Rotary potentiometer, linear

3.980.1518

Rotary potentiometer, linear

300° mechanical angle, without rotary knob

Rotary potentiometer
Resistance value: 4.7 kOhm
Tolerance: +/- 10 %
Type: linear
Electrical travel: 270° ± 10°
Mechanical travel: 300° ± 5°
Connection: solder terminals
Shaft: 25 mm, slotted
Fitting diameter: 8 mm
Threaded bushing: M10 x 0.75

Temperature range: - 55 °C to 125 °C
Protection class: IP67

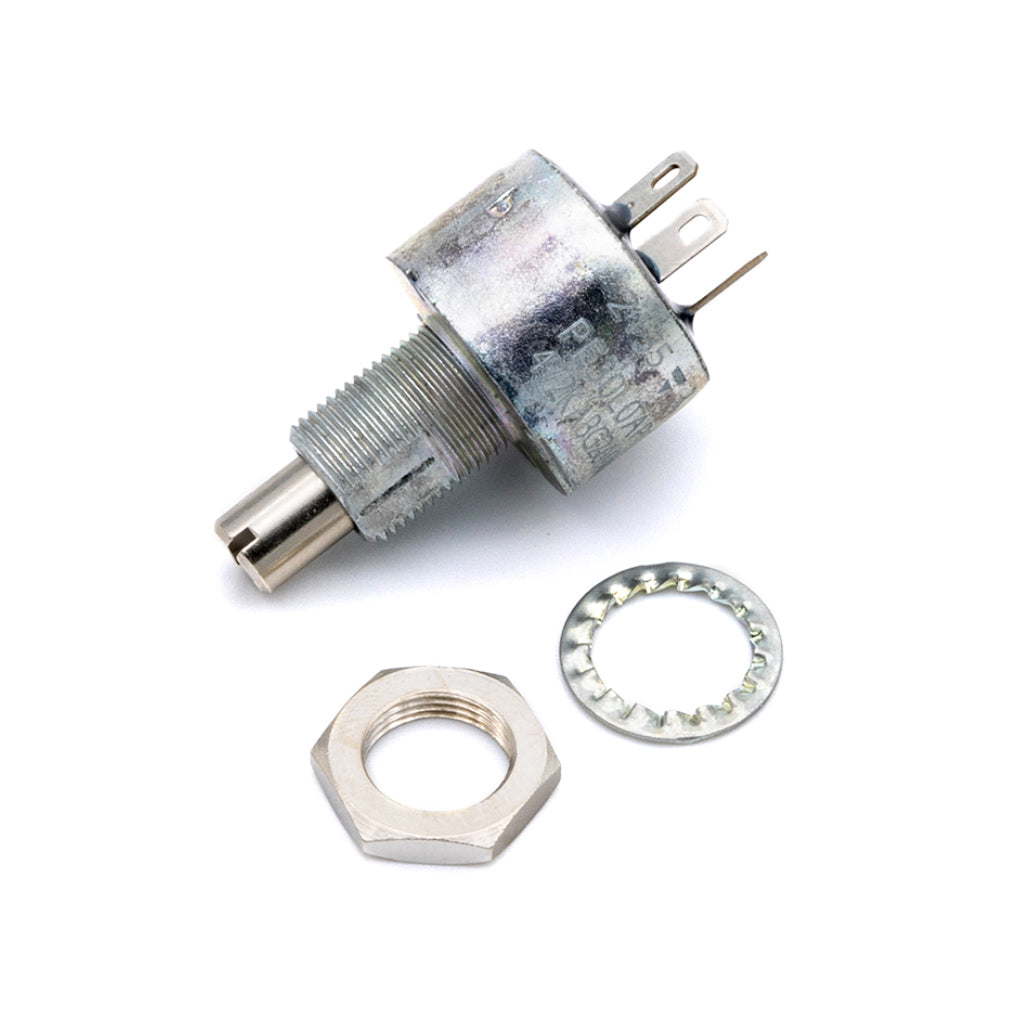

Consisting of:
1x potentiometer
1x serrated lock washer
1x fixing nut

EU RoHS (incl. exclusions): Yes
