3.960.1032

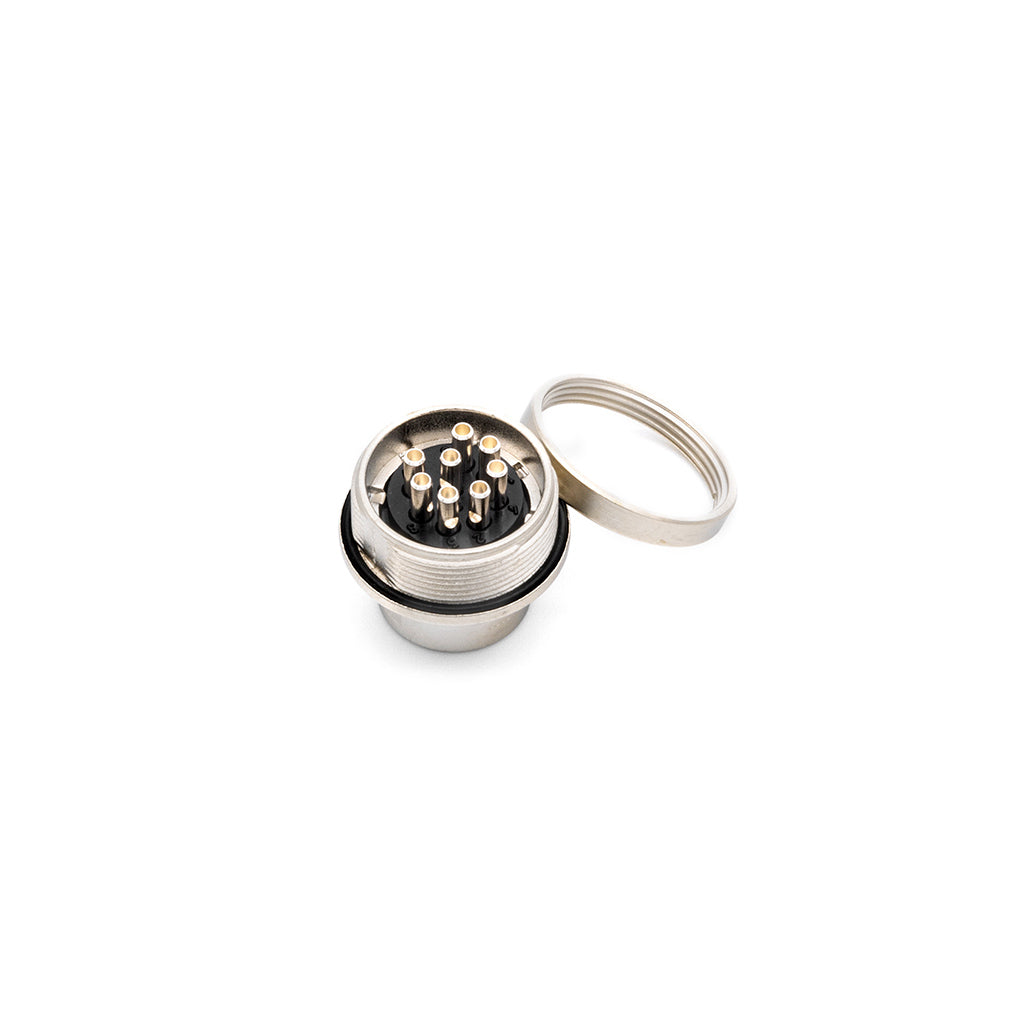

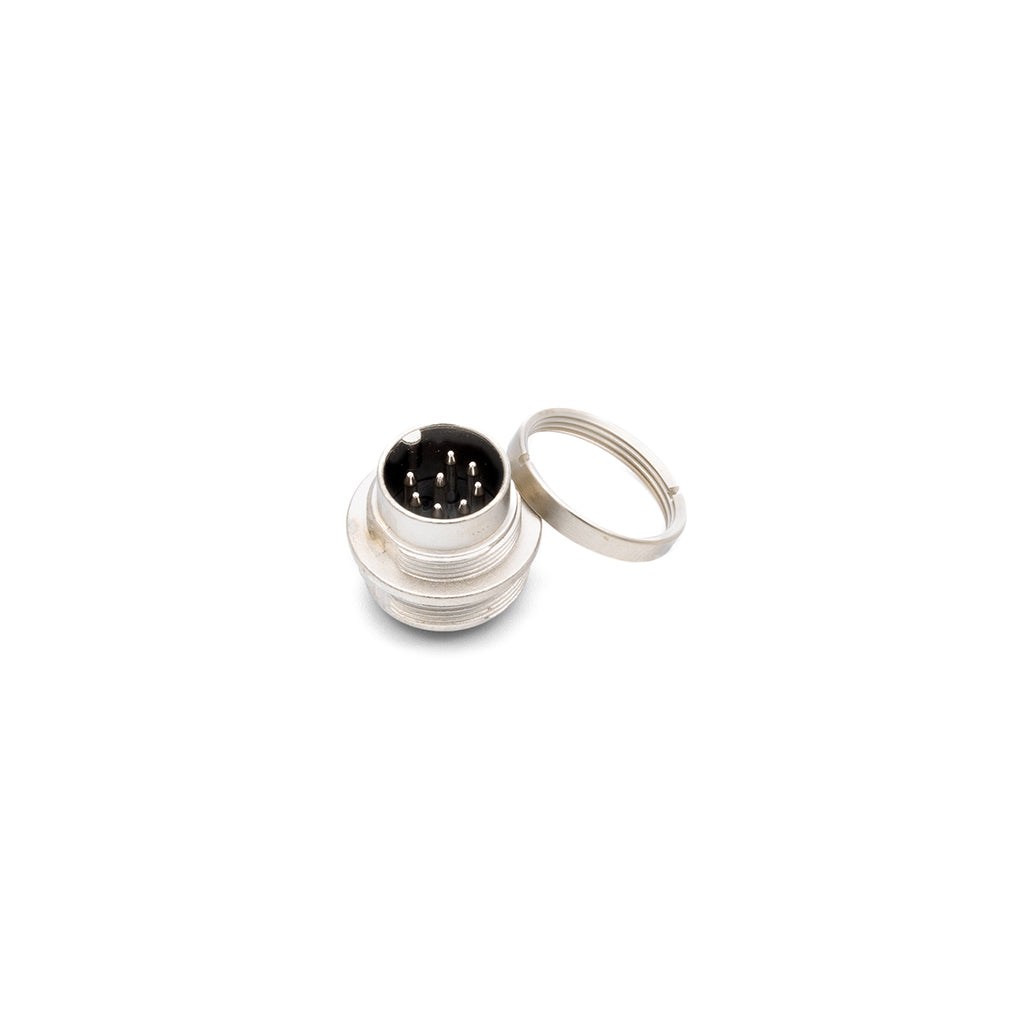

Flange plug, 8-pin
manufacturer / series: Binder / 09-0173-00-08
for front mounting, with seal
connector type: pin straight
contact surface: Ag (silver)
connection type: solder
connection cross section: max. 0.75 mm² / AWG 18
installation opening: Ø 18.0 mm
thread: M16 x 0.75 mm
limit temperature from / to: -40 °C / +95 °C
rated voltage: 60 V
rated current (40°C): 5 A
material housing: zinc die-cast nickel-plated
material contact body: PBT (UL94 V-0)
material contact: CuZn (brass)
contact surface: Ag (silver)
protection class: IP67
RoHS
