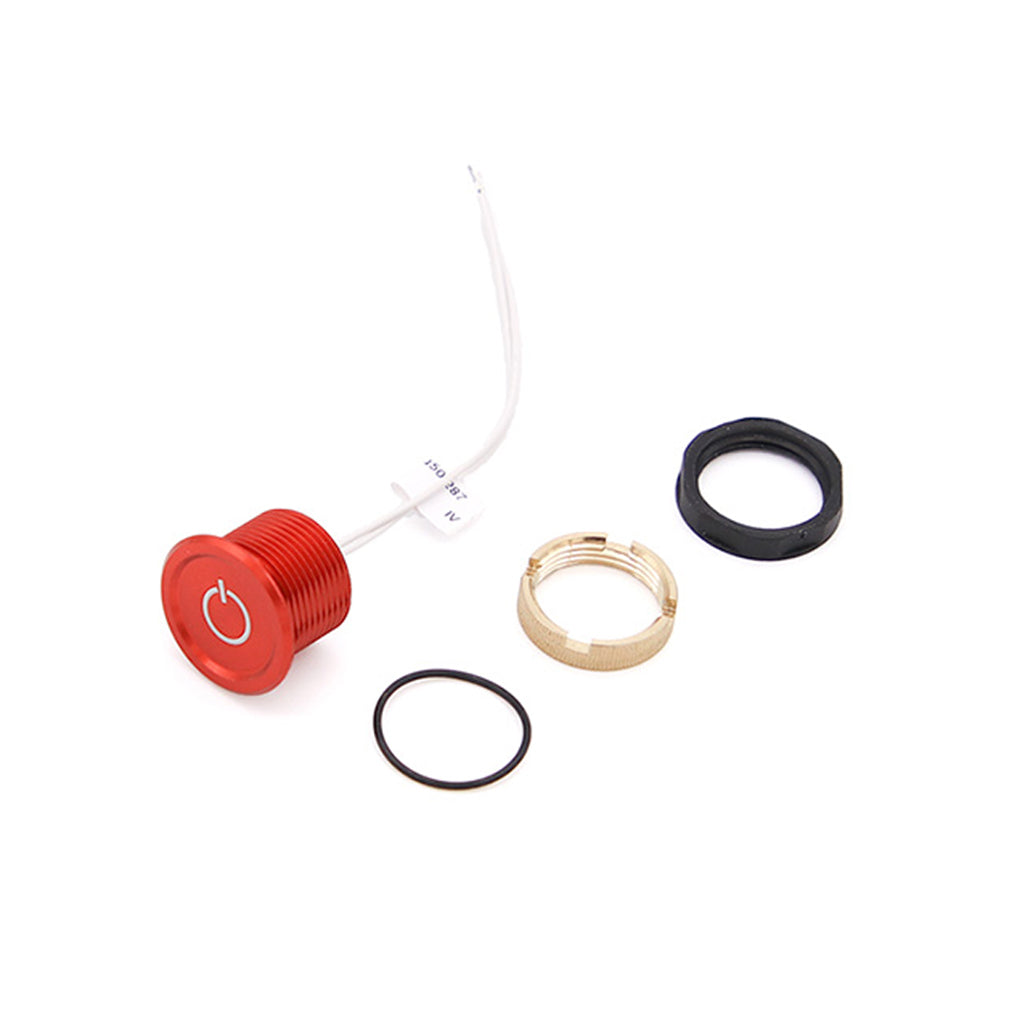

3.740.5006
Piezo pushbutton
manufacturer / series: Schurter/PSE IV 16
front mounting, with seal
lighted: no
funktion: NO-contact
pulse duration: 20-50 seconds
shape: round
symbol: On/Off button
color housing: red anodized
material housing: aluminum
fitting diameter: 16mm
threaded bushing: M16x1,00
connection: quick connection
cable length: 8 cm
switching voltage: max. 32 VAC / 48 VDC
switching current: max. 1 A
temperature range: -20 bis +60 °C
protection class: IP67 to IEC 60529, IP69K to DIN 40050-9
Scope of delivery:
1x fixing nut
1x sealing nut
1x Piezo pushbutton RoHS
